Chlorine dioxide sensor

The HT7501 chlorine dioxide sensor can sensitively detect traces of chlorine dioxide disinfectant residues in the environment.
  • Model:

    HT7501
  • Brand:

    HOTO INTELLIGENT CONTROL
  • Parameters
  • PDF


Product features:

The HT7501 chlorine dioxide sensor can sensitively detect traces of chlorine dioxide disinfectant residues in the environment. The sensor adopts the detection principle of three-electrode electrochemistry. The gas to be measured enters the sensor in a diffuse manner, and a chemical reaction occurs at the sensing electrode, thereby forming an internal current. The concentration of the gas is obtained by digital conversion by accurately measuring the size of the current. The sensor has the characteristics of low power consumption, high precision, high sensitivity, wide linear range, strong anti-interference ability, excellent repeatability and stability, digital/analog output, easy to use. It can be widely used in indoor chlorine dioxide detection, hospitals, medicine, water treatment, food industry and other fields and places.

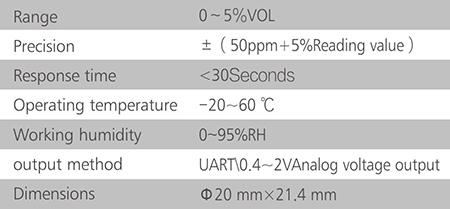

Performance:


Application field:

Indoor disinfectant testing

Pulp and Paper Industry

Water treatment plant

Portable and fixed-point TLV level monitoring

Air quality monitoring equipment

Industrial process and safety protection monitoring

Hospital and medicine
