Alcohol sensor

The HT6052 alcohol sensor can be used for breath alcohol concentration detection and indoor environment/car alcohol concentration detection. The sensor module comes with a high-stability vane pump...
  • Model:

    HT6052
  • Brand:

    HOTO INTELLIGENT CONTROL
  • Parameters
  • PDF


Product features:

The HT6052 alcohol sensor can be used for breath alcohol concentration detection and indoor environment/in-car alcohol concentration detection. The sensor module comes with a high-stability vane pump, which can quickly sample the gas in the environment, with a fast response speed, and the use of electrochemical alcohol The sensor performs accurate measurement. The sensor module is equipped with a temperature and humidity sensor as standard, which compensates for the influence of ambient temperature and humidity on the measurement of alcohol concentration, and uses intelligent algorithms to improve the measurement accuracy and anti-interference performance of the alcohol sensor. It has the characteristics of low power consumption, high precision, high sensitivity, high response, strong anti-interference ability, excellent repeatability and stability. Digital/analog output, easy to use.

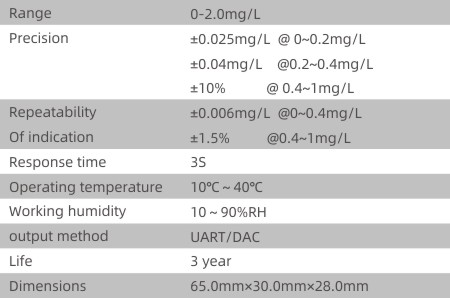

Performance:


Application field:

Portable breath alcohol detector

Environmental alcohol testing

Traffic safety

Environmental protection

Car alcohol test
